Hydraulic Disperser

30HP High Speed Disperser

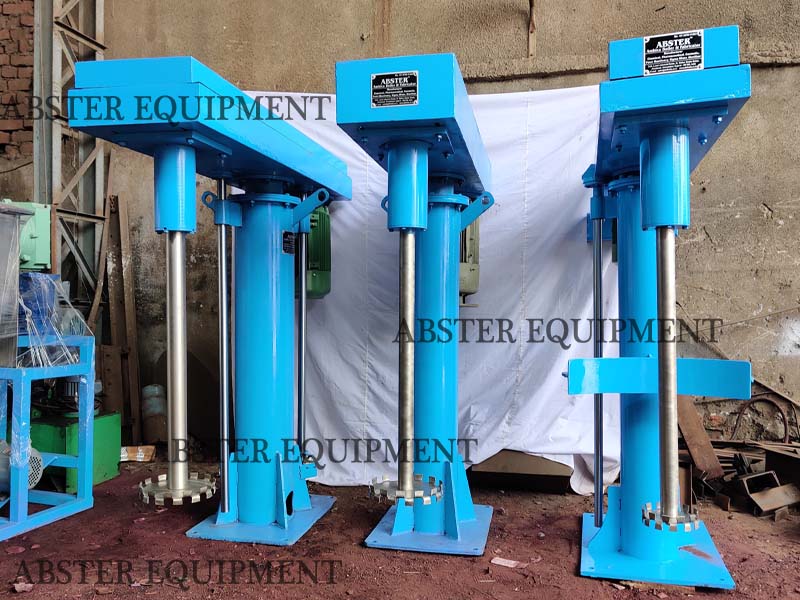

hydraulic-lifiting-high-speed-disperser


Product Advantages

Higher efficiency, better quality
The Max. rotation speed can be up to 2930rpm (For bigger power, 1450rpm), linear velocity is over 20m/s, it can rapidly disperse the powder in the liquid evenly; Due to its high shear forces, the material will be uniformly dispersed and formed a good suspension effect. Due to the strong shearing force , the materials are dispersed evenly and form good suspension effect.
Safe and convenient operation
Adopt hydraulic cylinder as lifting actuator. Control the hydraulic up, stop, down through the oil pump, easy operation and stable. The dispersing disc is fixed to the main shaft with Hexagon socket-head cap screws, which can be disassembled and exchanged quickly, easy to clean. Different dispersing discs can be exchanged accordingly to production process to obtain optimized dispersing result. Different clamping types(Belt Clamping, Manual Rotation Clamping, Pneumatic Clamping) are optional to fix the tanks properly to prevent from accident due to the tank displacement during operation.
Various installation ways
With compact structure, the machine can be floor type and platform type. Tank working with the mixer can be removable type or fixed type.
Customized options
Different options are available such as explosion-proof type, closed type, multi-tanks type, with lifting cover type, co-axial type/dual-shaft type, mounted on kettle type, etc.. Material can be customized to be SS304 \SS321 \SS316L .


  • Hydraulic High Speed Disperser is Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • Best use of Disperser is to dissolve and disperseion of Liquid and Liquid with solids.
  • Disperser is availabe in Manual or Hydraulic Up and Down Arrangment.
  • High Speed Dispersion machine has Starting Capacity Ranging from 50 litrer to 1000 liters
  • Suitable for Putty, Primers, Distempers, Plastic paint, Exterior emulsions & premium wall finishes for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding.
  • Quote Request





    High Speed Disperser, High Speed Disperser mixer, Dissolver, Paint High Speed Disperser, dispersion machine

    High-speed Disperser is to dissolve, disperse and mix materials with different viscosity. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently.

    High Speed Disperseer Working Principle


    hydraulic-lifiting-high-speed-disperser


    Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
    The hydraulic pump drives the hydraulic cylinder ascend and descend, which drives the whole transmission and working set up and down.


    Technical Data Sheet:

    Model

    Motor power

    (kw)

    Speed

    rpm

    Disc Dia

     (mm)

    Capacity

     (L)

    Hydraulic power
    (kw)

    Lifting

     (mm)

    Weight

    kg

    HSD-1.5

    1.5

    0-1450rpm

    120

    ≤60

    0.55

    600

    400

    HSD-4

    4

    0-1450rpm

    200

    ≤200

    0.55

    900

    600

    HSD-7.5

    7.5

    0-1450rpm

    230

    ≤400

    0.55

    900

    800

    HSD-11

    11

    0-1450rpm

    250

    ≤500

    0.55

    900

    1000

    HSD-15

    15

    0-1450rpm

    280

    ≤700

    0.55

    900

    1100

    HSD-18.5

    18.5

    0-1450rpm

    300

    ≤800

    1.1

    1100

    1300

    HSD-22

    22

    0-1450rpm

    350

    ≤1000

    1.1

    1100

    1400

    HSD-30

    30

    0-1450rpm

    400

    ≤1500

    1.1

    1100

    1500

    HSD-37

    37

    0-1450rpm

    400

    ≤2000

    1.1

    1600

    1600

    HSD-45

    45

    0-1450rpm

    450

    ≤2500

    1.5

    1600

    1900

    HSD-55

    55

    0-1450rpm

    500

    ≤3000

    1.5

    1600

    2100

    HSD-75

    75

    0-1450rpm

    550

    ≤4000

    2.2

    1800

    2300

    HSD-90

    90

    0-950rpm

    600

    ≤6000

    2.2

    1800

    2600

    HSD-110

    110

    0-950rpm

    700

    ≤8000

    3

    2100

    3100

    HSD-132

    132

    0-950rpm

    800

    ≤10000

    3

    2300

    3600

    Note: Above data may be change without prior notice
