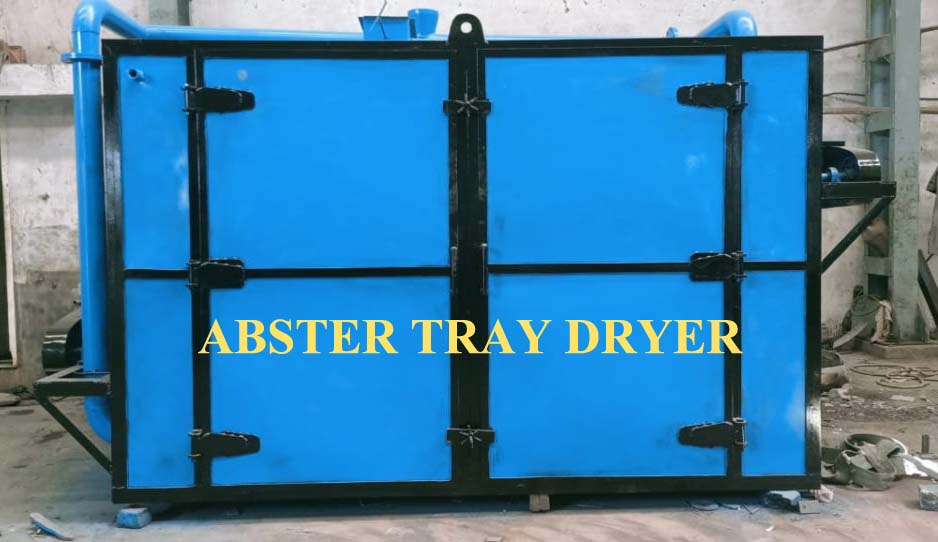

Tray dryers are broadly used by pharmaceuticals, chemicals, dyes and food industries for the purpose of roasting, drying, heating. We are providing these trays in the model where the size ranges from 12 to 192 trays and even bigger as per clients requirements..
- Textiles & other industries
- Model: Standard model, GMP Model available
- Fan is dynamically balanced with specially sealed bearing to withstand the high temperature
- Heating Arrangement - Electrical / Steam heating
- Designed for uniform circulation of hot air in the drying chamber
- Tunnel type dryers wherein trolleys are placed one behind the other and double door loading
- Electric heater terminals situated outside the hot zone in case of electrically heated dryers. Heaters are accessible and replaceable from outside the dryer
- The front doors are explosion proof and are locked with the help of spring loaded ball latches with suitable pressure
- Tray size is 16 x 32 x 1.25 (h) inches
- Capacity: 6 to 240 trays
Tray Dryer Specification
|Loading Capacity||12 Trays||24 Trays||48 Trays||96 Trays||192 Trays|
|No. of Doors||One||One||One||Two||Two|
|No. of Blowers||One||One||One||Two||Four|
|No. of Motors / H.P.||1 / 0.5 H.P.||1 / 0.5 H.P.||1 / 1 H.P.||2 / 1 H.P.||4 / 1 H.P. each|
|3 phase 415 volts||3 phase 415 volts||3 phase 415 volts||3 phase 415 volts||3 phase 415 volts||3 phase 415 volts|
|Electrical Heating Load for
100°C / 200°C / 300°C
|Steam Heater No. of coils.||2||2||2||2||2|
|Steam Pressure||3.3 kg / cm2||3.3 kg / cm2||3.3 kg / cm2||3.3 kg / cm2||3.3 kg / cm2|
|Steam Consumption||25 LBS / hr||45 LBS / hr||60 LBS / hr||80 LBS / hr||120 LBS / hr|
|Insulation in mm
100°C / 200°C / 300°C
|50 / 75 /75||50 / 75 /75||50 / 75 /75||50 / 75 /75||50 / 75 /75|
|No of Trolleys||Rack System||Rack System||One||Two||Four|
|Tray Size||812 x 406 x 31||812 x 406 x 31||812 x 406 x 31||812 x 406 x 31||812 x 406 x 31|
|Trolley Dimension||Fixed Racks||Fixed Racks||840 x 960 x 1780||840 x 960 x 1780||840 x 960 x 1780|

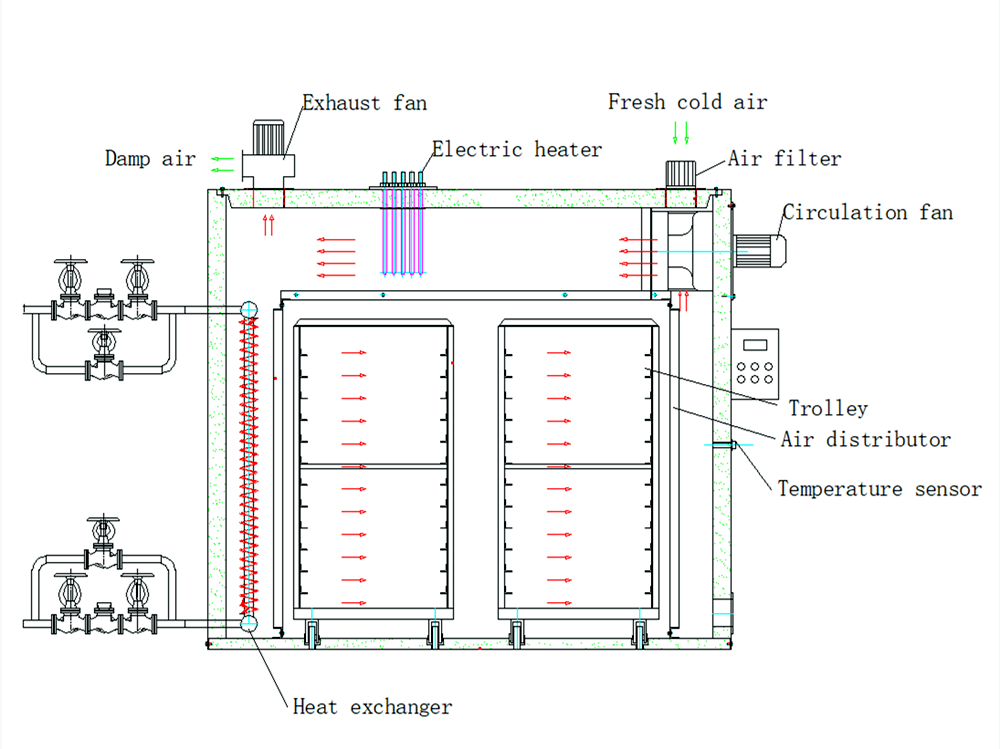

Tray Dryer GMP Model – tray dryer Working Principle with 12 tray dryer, 24 tray dryer 48 tray dryer, 96 tray dryer, 192 tray dryer, Hot Air tray dryer. Cabinet tray dryer and Vacuum tray Dryers with stainless Steel contact parts 304 and 316 , 316 L.
- Tray Dryer Steam Operated 30'c To 100'c G.M.P. Model With S.S. 304 Externals & S.S. 316L Internals.
- EXTERNAL: 2MM THKINTERNAL: 2MM THKMOC: CGMP
- Surface Finish:
- EXTERNAL: Buffed to 150 grit matt finish INTERNAL: Buffed to 220 grit mirror finish.
- Inlet & Outlet:
- All dryers have a 5 micron pre filter r at the inlet and a manually infinite adjustable damper at the outlet.
- Doors at provided at the front and / or rear side of the dryer. Door lips are lined with silicon rubber gasket to prevent any leakages. Suitable locking is provided for the doors.
- Air Circulation:
- Air circulation is done by specially designed recirculation blowers inside the dryer. The blower capacity, static & design depends on the size and model of dryer.
- Dryers are normally supplied with steam/ electric/ thermo fluid / hot water heating system. Suitable heating coils / clarifiers are provided in the dryers.
- Temperature Control:
- Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.
- Trays are available in S.S. 304/ 316 q. All trays are fully die pressed and with coved corners. Trays are buffed to mirror finish. Trays are also available in aluminium / Polypropylene / Frap/ M.S. galvanized as per clients requirements.
- Trolley is provided in the dryers to accommodate trays in it. Trolley trucks are used to load and unload the trays into the dryer.
- Control Panel:
- Automatic Control panel is fitted on the side of the dryer. If consists of Starters, contactors, safety relays, ckt breakers, indicating lamps, push buttons , timers, controllers etc.
