Sugar Coating Machine

Sugar Coating Machine Introduction

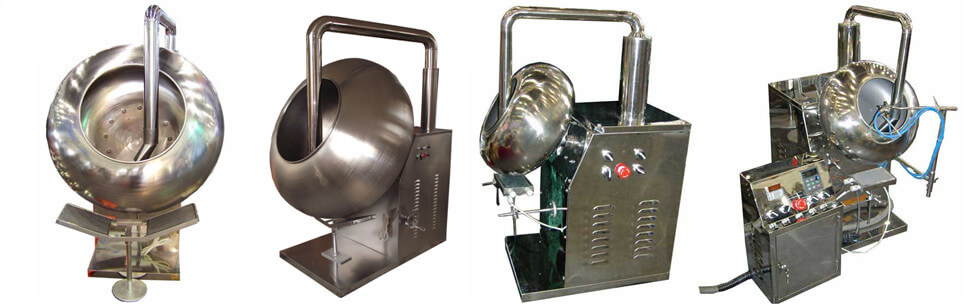

sugar coating machines for sale



Abster sugar coating machine is widely used in the pharmaceutical industry, candy processing industry, and snack food industry, and it is also used to process many kinds of grain food like Japan bean, hollow beans, beans fishskin peanuts, Chocolate beans, Chocolate peanut, candied peanut in the variety of food coating.






Sugar Coating Machine Features

The machine is composed of rolling pan, machine frame, transmitting system, and heating system. This machine is more suitable for coating of non-circular material or high viscosity material. The cooperation of motor and reducer can reduce the processing speed to an easy operation state. The sugar tablet will have a bright and smooth surface. Our systems are able to deliver a high-quality sugar coating basic for hard candy or soft candy.

 what materials can be processed by this coating machine


Sugar Coating Machine Highlights

1. GMP conformity
2. With the latest technology and unique design, which has a better effect than the old model
3. 304 Stainless steel
4. Small land occupancy and investment
5. Just needing 1-2 workers to operate, labor-saving
6. Machines(voltage)can be customized according to your requirements

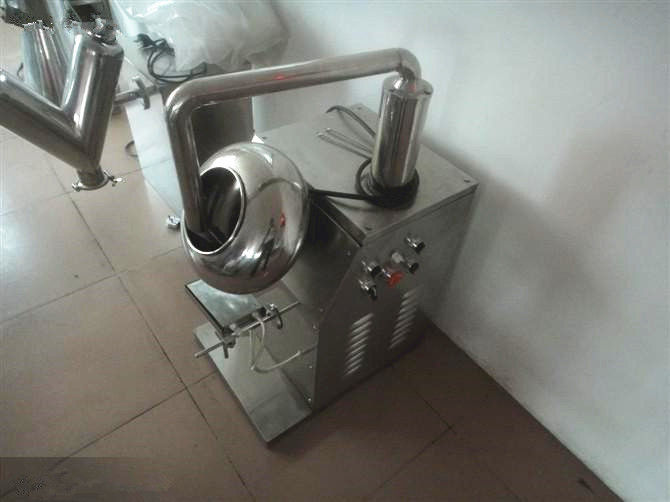

Automatic Small Type Peanut Sugar Coating Machine For Food Company supplier

Automatic Small Type Peanut Sugar Coating Machine For Food Company supplier

Notes:
Auxiliary equipments: spray tank, pump,temperature controller,cart ,etc.

Technical Parameters of Sugar Coating Machine

Model
ABF-SC-300
ABF-SC-400
ABF-SC-600
ABF-SC-800
ABF-SC-1000
Capacity
2 kg/per time
5 kg/per time
15-30 kg/per time
50-100 kg/per time
70-150 kg/per time
Pan Diameter
300 mm
400 mm
600 mm
800 mm
1000 mm
Main Motor
0.75 kw
0.55+0.75 kw
2.2 kw
2.2 kw
2.2 kw
Rotational Speed
46 r/min
46 r/min
32 r/min
32 r/min
32 r/min
Angle
15°- 45°
15°- 45°
15°- 45°
15°- 45°
15°- 45°
Weight
37 kg
38 kg
200 kg
280 kg
300 kg
Dimension
(L*W*H)
480*360*700mm
480*360*700mm
650*600*920mm
800*750*1300mm
1000*900*1400mm
