Mud Agitator

Mud Agitator

Drilling Mud Mixers, AgitatoraMud agitator can be classified to horizontal and vertical mud agitator. All mud agitators feature a brand motor coupled to a mud agitatorrugged oilfield gearbox, which eliminates misalignment and troublesome couplings. This configuration promotes longer motor and gearbox bearing life. This highly efficient gearbox offers a 95% power transfer, which is approximately 30% more than a worm drive gearbox.

Drilling Mud Mixers

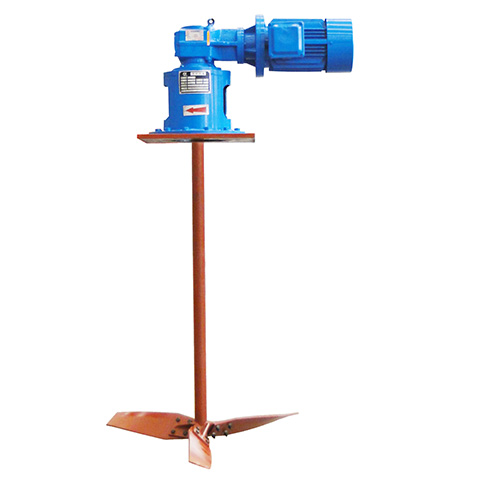

A Mud Agitator is used in surface mud systems to suspend solids and maintain homogeneous mixture throughout the system. A mechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers (turbines) transform mechanical power into fluid circulation or agitation of drilling fluid mud agitator. The objective is to obtain a uniform suspension of all solids.

reaction vessel

Types of Agitator Mounting

  • Horizontally mounted agitator
  • Vertically mounted agitator

Types of Agitator Mounting

  • Mechanical seal
  • Packing seal

Types of Agitator Impellers

  • Radial Flow Impeller.
  • Axial Flow Impellers

Types of Impeller Blades

  • Flat blade impeller
  • Canted blade impeller
  • Contour blade impeller

Descriptions of Mud Agitator

  • 1. Mud agitator is an equipment to mix solid and fluid, mainly used in oil and gas drilling mud process, mineral working site, etc. mud system.
  • 2. This type agitator holding simple structure, large bearing strength, low noise, more durable. It prevent solid sediment and maintain drilling fluid property. Features 1.Typical C face motor installation 2.Small footprint without skid
  • 3.Helical-Bevel gearbox 4.Motor can be horizontal or vertical Benefits 1.Longer usable life on motor and gear box 2.Require less space also easy to handle 3.High efficiency, low noise, low operating temperature
  • 4.Adaptable for different application
