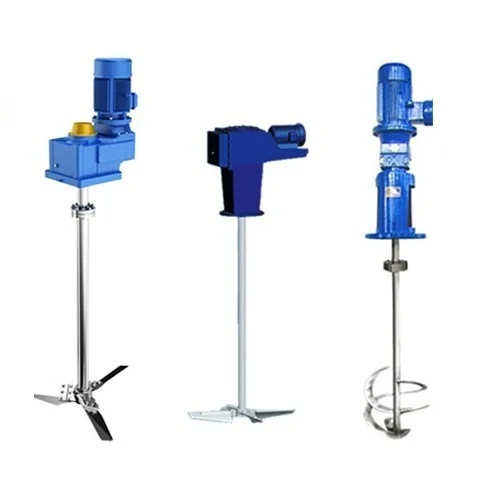

Top Entry Mixers

Products

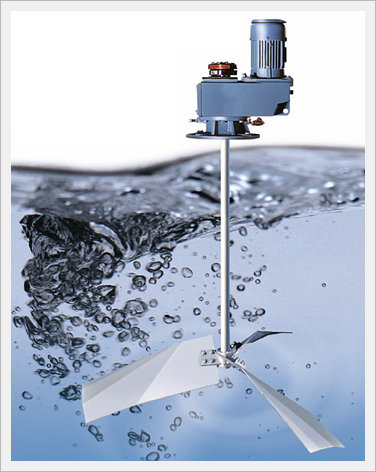

Top Entry Mixers-Hydrofoil Agitator


Top Entry Mixers (Hydrofoil)
for Advanced Water and Wastewater Treatment

The need for a more efficient impeller becomes apparent as electrical and maintenance costs continue to climb. Hence, the evolution of the Hydrofoil Agitator- using an aerodynamic design approach it maximizes lift and minimizes drag. This results in a significantly more efficient and power conscious impeller.

  • for Flocculation
  • for Sewage Treatment
  • for wastewater Treatment
  • for Other Uses

Hydrofoil Impeller

Optimizing mixing system needs an appropriate application technology of suitable impeller. Our agitator's impeller design covers from simple flat blade to axial flow hydrofoil blade; the most advanced one is hydrofoil blade. It can be applied to any kind of mixing process of water treatment.

Special Quality of Hydrofoil Impeller

  • Low Power Number(Np=0.3)
  • High Pumping Number(Nq=0.6)
  • High efficiency fluid dynamic by low power consumption
  • Maintains uniform concentration of mixed materials in basin fluid.

for Anoxic and Anaerobic Tank

The agitators can be used for removal of nitrogen and phosphorus in the advanced wastewater treatment. They are the most appropriate agitators for floating sludge sediment without inflow of oxygen in the advanced wastewater treatment.

for Flocculation
They are the most appropriate mixers for coagulation with optimum conditions in chemical sedimentation of the advanced water treatment.
