Ghee Making Machine

Ghee from Makhan (desi butter) is made in a small batch in Karahi. After the water is evaporated and ghee is ready, it is cooled and residue is separated. With the help of a stirrer called Khunti, scraping is done for better heat transfer. This method is not hygienic though common in villages. i. Ghee Boiler At an industrial scale of manufacturing Ghee, Kettle. It is a double walled, hemi-spherical or cylindrical shape jacketed vessel. It has provision for steam heating at a steam pressure of 3.5 kg/cm 2 and condensate outlet, safety valve pressure gauge, agitator cum scraper etc. Since there will be deposit formation on heating surface regular scraping at slow speed is required. There is also a product outlet valve for unloading the finished product. The capacity of this kettle ranges from 50 kg to 1000 kg. There is also one dial type thermometer to indicate the temperature of the jacket. The temperature is varied during preparation of ghee. Same vat or a separate vat may be required for settling the residue and cooling the ghee. For this, agitator is stopped and the product is held overnight and the residue, which settles in, the bottom is filtered out. Ghee is then packed in the polyethylene or plastic pouches or tin-coated cans. Filling and sealing is done manually. For large production, this operation is also mechanized. Suitable filters and cappers are available.

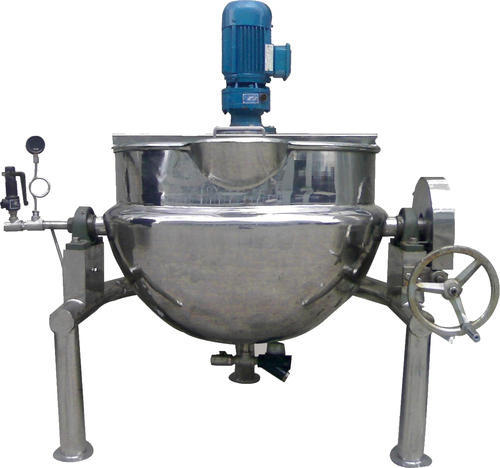

Ghee Kettle

Type   : Tripple walled & insulated, Cylindrical body with hemispherical bottom
Inner Shell   S.S.316 /  6.0 mm thick
Intermediate shell  M.S.  / 6.0 mm thick
Outer Shell  S.S. 304 / 2.0 mm  thick.

Insulation

Glass wool  of  100 mm  thick in between the outer shell and intermediate shell.

Agitator

Scraper type, with vertical mounting geared motor of suitable R.P.M.

Product Inlet

Dia 38 mm SMS  with  union located at top.

Side outlet   :   dia  38 mm  sms plug valve
Bottom outlet : dia 51mm  sms  plug valve

Steam inlet & Outlet

Will be provided with flange and  counterflange out side the outer shell

Airvent & Saftey Valve

It will be provided at the top  most  point of the steam jacket.

Thermowell

3 / 4 inch B.S.P.[F], Thermometer  ( optional ), 4" dial, stem type , 0 —150 range

Covers  :  Bi - sectional, removable type Testing
