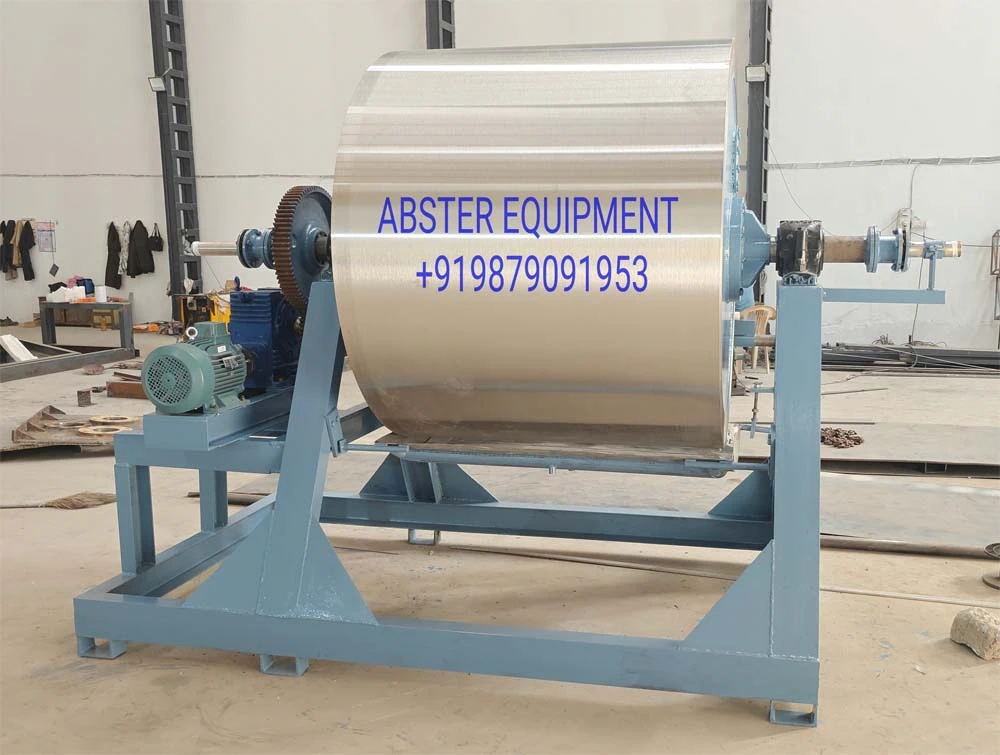

drum dryer, drum flaker


Application of Drum Flaker : Drum Flaker, Drum Flaker Products, Drum Flaker Suppliers and Manufacturers

Flaker Drum Dryer

Drum flakers (also known as cooling drums) are used for solidifying molten material. After processing on flakers, the material forms films or easily handled flakes and is further processed or packed into containers for transport. A great advantage of flakers is that they offer a continuous process.

drum dryer flaker, flaking machine, drum flaker machine, drum flaker drum dryer flaker, flaking machine, drum flaker machine, drum flakerdrum dryer flaker, flaking machine, drum flaker machine, drum flaker

Working Principle

The hot material is applied to the cooling drum by direct immersion into a trough, or indirect immersion using doctor/applicator rolls. The molten liquid is cooled on the cooling drum and after a partial revolution; the cooled and solidified product is removed by a scraper in the form of flakes or film. The cooling drum of the flaker is specially designed to provide an even cooling effect by having uniform and effective internal distribution. As a result, both high output and homogeneity of the product are possible.

Salient Features

  • Variable speed drive arrangement for adjustment of the drum speed for optimum performance
  • Suitable for a wide range of chemical and pharmaceutical products
  • Contact parts can be stainless steel, carbon steel, and hard chrome plated depending on material requirements
  • Accessories include hood, flake breaker, flake conveyor, applicator roller etc

Technical parameters of drum flaker

Specification

Roller size

(mm)

Effective heating
      		Drying capacity Steam consumption (kg/h) Motor power (kW) Overall dimensions (mm) Weight (kg)
area m2 kg.H2O/m2.h
DF-600 Φ600×800 1.12 40-70 100-17s5 2.2 1700×800×1500 850
DF-700 Φ700×1000 1.65 60-90 150-225 3 2100×1000×1800 1210
DF-800 Φ800×1200 2.26 90-130 225-325 4 2500×1100×1980 1700
DF-1000 Φ1000×1400 3.3 130-190 325-475 5.5 2700×1300×2250 2100
DF-1200 Φ1200×1500 4.24 160-250 400-625 7.5 2800×1500×2450 2650
DF-1400 Φ1400×1600 5.28 210-310 525-775 11 3150×1700×2800 3220
DF-1600 Φ1600×1800 6.79 270-400 675-1000 11 3350×1900×3150 4350
DF-1800 Φ1800×2000 8.48 330-500 825-1250 15 3600×2050×3500 5100
DF-1800A Φ1800×2500 10.6 420-630 1050-1575 18.5 4100×2050×3500 6150
