Vacuum Tray Dryer for Pharmaceutical

Vacuum Tray Dryer


Vacuum Tray Dryer are used where heating and drying are essential parts of manufacturing process in industries such as Chemicals, Dye stuff, Pharmaceutical, Food Products, Colors etc. Vacuum Tray Dryer is suitable for drying of thermal sensitive material easily deteriorated under higher Temperature. It eliminates configuration damage of the drying materials

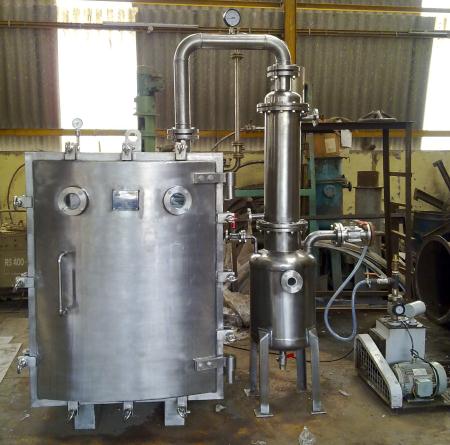

vacuum tray dryer

reaction vessel

Bodies may be of cylindrical or rectangular cross section. Both shelves and body are heated (the body to prevent internal condensation) with controlled circulation of hot water, steam or dia thermic fluid. Vacuum is drawn through large diameter ducts to minimize pressure drops and produce minimum working pressures. Both rotary and static dryers can be supplied with the following Optional ancillaries.

  • Heater system for either pressurized hot water or dia thermic fluid.
  • Cyclones and sleeve filters for powder recovery (for rotary dryers)
  • Solvent recovery system with condenser and receiver, vacuum pump and ancillaries, characteristics and dimensions depending on the drying processes.

model ABFVTD 3 ABFVTD 6 ABFVTD 12 ABFVTD 24 ABFVTD 36 ABFVTD 48
no. of trays 3 6 12 24 36 48
capacity in kg 03/05/12 12/18/12 25-35 50-75 75-100 100-150
tray volume in lts /cap. in kg 5/1-1.5  10/2-3  10/2-3 10/2-3  10/02/03  10/2-3
 tray size l w h in mm 406 x 406 x 31 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31
 no. o heating shelfs 4 7 7 9 13 17
 shelf size in mm 430 x 430 430 x 835 835 x 835 835 x 1259 835 x 1250 835 x 1250
distance between shelves in mm 100 100 100 100 100 100
trays on each shelf 1 1 2 3 3 3
condensor 0.2 m2 0.5 m2 0.75 m2 1 m2 1.5 m2 2 m2
reciever 10 ltrs 25 ltrs 50 ltrs 75 ltrs 100 ltrs 150 ltrs
vacuum pump capacity 1 hp 3 hp 3 hp 5 hp 5hp 7.5 hp
h.W distribution pipes 1.5 inch  1.5 inch 1.5 inch 1.5 inch 1.5 inch 1.5 inch
 door gasket(silicon) 16mmsq 16mmsq 16mmsq 16mmsq 16mmsq 16mmsq
no if door bolts (40 mm dia) 4 8 10 10 12 12
