Pharmaceutical Machinery and Equipment


mass mixer for tablet powderWe manufacture better quality of pharmaceuticals equipments that are used for producing powders and particulate in the pharmaceutical industry. The pharmaceutical processing equipment includes low capacity dryers designed for specific potent powders as well as industrial size plants for permanent operation under strict hygiene standards. The product applications include preparation of analgesics, antibiotics, enzymes, proteins, vaccines and vitamins.

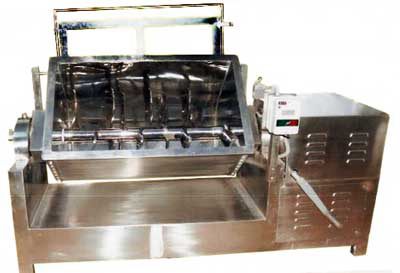

Mass mixers are special pharmaceutical machinery used for through mixing of wet as well as dry or lump material, especially suited for tablet granulation. The Mass Mixer Machine is basically mixing an assembly wherein the mixing stirrer is in horizontal position in the container Mass Mixer & has a single speed, simple rotation. The stirrer rotates around itself at a very slow speed inside the bowl and thereby achieving intimate mixing of dry or wet materials of Tablet Granulation, Powder, Chemicals, and Food & Confectionaries Materials.

We deal in manufacturing and export of superior quality mass mixers, that are available in different over flow capacities, working capacities to choose from. These mixers are furnished with tilting device for easy unloading of the material. Easy to operate and clean, these machines can endure intense conditions.
Note: Dimensions & Technical Details are subject to change as per customers' requirement without any further notice.

Double Cone Blender

Double cone blender mixer for pharmacuticalCapacity from 10 Liters upto 3500 Liters, Double Cone Blender is an efficient for mixing dry powder and granulates homogeneously. All the contact parts are made of stainless steel. Two-thirds of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.

Octagonal Blender

octagonal blenderThe Octagonal Blender is an efficient and versatile blending machine for mixing and lubrication process. Octagonal Blender with Cylindrical Container of dry granules equally. It can be used for pharmaceutical, food, chemical and cosmetic products etc.

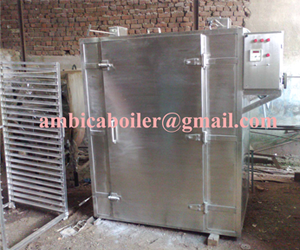

Tray Dryer

tray dryer

  • Construction: External : 2MM THK Internal : 2MM THKMOC: cGMP
  • Surface Finish : External:Buffed to 150 grit matt finish Internal: Buffed to 220 grit mirror finish.
  • Inlet & Outlet: All dryers have a 5 micron pre filter r at the inlet and a manually infinite adjustabledamper at the outlet.
  • Door : Doors at provided at the front and / or rear side of the dryer. Door lips are lined with silicon ruuber gasket to preventany leakages. Suitable locking is provided for the doors.
  • Air Circulation : Air circulation is done by specially designed recirculation blowers inside thedryer. The blower capacity , static & design depends on the size and model of dryer.
  • Heating : Dryers are normally supplied with either steam / electric / thermic fluid / hot water heating system. Suitable heating coils / caloriefiers are provided in the dryers.
  • Temperature Control : Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.
  • Trays : Trays are available in S.S. 304 / 316 q. All trays are fully die pressed and with cooved corners. Trays are buffed to mirror finish. Trays are also available in aluminium / Polypropelene / Frp / M.S. galvanized as per clients reqiuirements.
  • Trolley : Trolley is provided in the dryers to accommodate trays in it. Trolley truck are used to load and unload the trays into the dryer.
  • Control Panel : Automatic Control panel is fitted on the side of the dryer. If consists of Starters, contactors, safety relays, ckt breakers, indicating lamps, push buttons , timers, controllers etc.

Vacuum Tray Dryer

Vacuum tray dryer FEATURES

  • All stainless steel 304 / 316 / 316L CGMP or mild steel externals with stainless steel internals (vapor and product contact parts)
  • Hollow pad type heating shelves which are easily removable for maintenance
  • Condensor and condensate receiver fitted on the dryer body or stand alone for remote installation
  • Fully welded skirt on vacuum dryer body for flush mounting through the wall
  • External insulation of dryer with protective panels in stainless steel or mild steel powder coated
  • Dedicated fluid heating and circulating systems. These can be steam or electrically heated. Fluid heating systems are available for water as well as thermic fluid.
    ( for temperature requirements above 95 degree centigrade )
  • Validation ports and nitrogen purge nozzles
  • Steam sterilisable models available
  • Double door loading available for larger models
  • Tray size is 16 x 32 x 1.25 (h) inches

Starch Paste Kettle

paste kettle FEATURES

We are instrumental in offering a quality range of Paste Kettle Vessel, called as Vessel for preparation Tablet Coating Solution specially manufactured by high grade raw material. This Paste Kettle Vessel is widely appreciated for its features like efficient for preparation of starch paste, excellent durability, strong structure, high performance and fine finishing. We are also offering customized range of Paste Kettle Vessels as per the requirement of the client. We are offering Paste Kettle Vessel at market leading prices.
