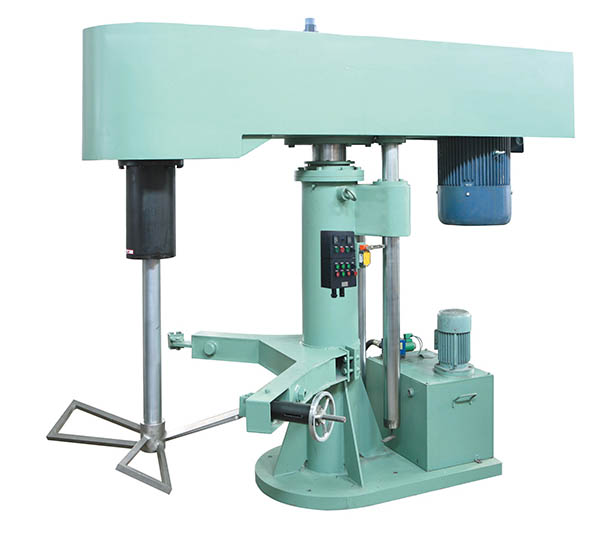

Butterfly Hydraulic Disperser

HIGH VISCOSITY BUTTERFLY TWIN SHAFTS MIXER



Butrerfly Mixer Disperser High Speed Disperse

  • HButterfly Hydraulic Disperser is Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • Best use of Disperser is to dissolve and disperseion of Liquid and Liquid with solids.
  • Disperser is availabe in Manual or Hydraulic Up and Down Arrangment.
  • High Speed Dispersion machine has Starting Capacity Ranging from 50 litrer to 1000 liters
  • Suitable for Putty, Primers, Distempers, Plastic paint , Exterior emulsions & premium wall finishes for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding.


  •

    Applications:

    Paints, Inks, Pigments, PU Resin, Silicon glues, Foodstuff, Dyestuffs, Ointments, Cosmetic... etc high viscosity dispersion.

    Characteristics:
    • Butterfly two shafts mixer aims at thick and high viscosity liquid materials. The central low speed designs the butterfly type impeller with Teflon scrapers, Teflon scraper can remove the adhered material which mass on inside tank wall and inside tank bottom into the mixing circulation for completely mixing. Mixing shaft can lift up and down for better mixing quality. One high speed shaft will make one high speed whirlpools, one low speed shaft will make another circulation, Those circulations come cross to make the best kneading twisting and dispersing effects for raw materials in tank.
    • The parts which will touching the raw material are made of #304 stainless steel.
    • Machine designs the arm holder to fix the tank while mixing.
    • High speed serrate impeller runs from 0~1500rpm, Low speed butterfly impeller runs from 0~60rpm.
    • Available viscosity 100.,000cps.

      HSD5.5 HSD7.5 HSD11 HSD15 HSD18.5 HSD22 HSD30
    Main motor power (kW) 5.5 7.5 11 15 18.5 22 30
    Dispersion shaft speed (r/min) 0-1500 0-1200 0-1000
    Height of shaft lifting (mm) 900 1200 1400
    Estimated processing batch≤L(we take water as example) 350 400 450 500 700 1000 1500
    Dispersion discs diameter (mm) L 1655 2150 2120
    W 570 800 900
    H
    Net weight (kg) 1140 1155 1165 1830 1850 1885 2000

    Note: Above data may be change without prior notice
