Contra Cream Paste Mixer

Semi Contra Cream Paste Mixer

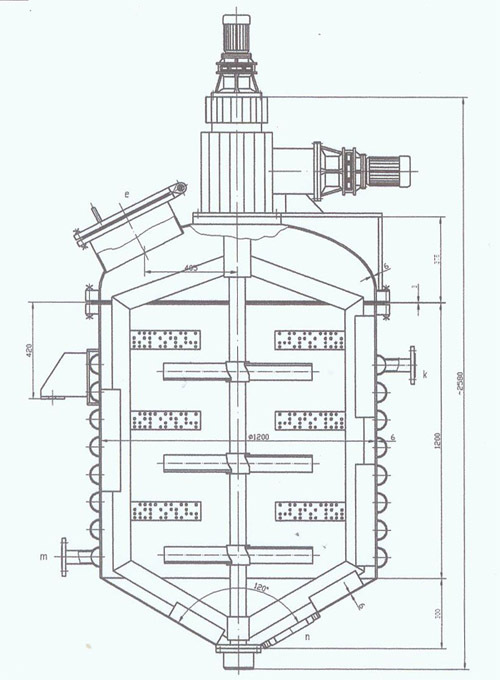

Contra type cream paste mixer

Contra type cream paste mixer

Salient Features

  • The Semi Contra rotary mixer effectively mix materials to make Cream /Ointments
  • Combines the solid and liquid particles effectively under vacuum and whirl force
  • Anchor paddles & scrapers with sets of fixed baffle plates ensure thorough mix
  • Materials may be either charged open cover or by vacuum feed.
  • Large quantities of material from phase vessel is sucked efficiently by vacuum
  • Supported on 3 legs : 3 1/2 " Size located at 120 deg.equal angles
  • Top Main stirrer speed-6-60 RPM, driven by suitable HP motor
  • Motor : Crompton / Kirloskar make - FLP and Gearbox - Radicon / Elecon / Santhi
  • Shaft is supported through a heavy duty bearing housing with mechanical seals
  • Bottom discharge valve is pneumatically operated and CIP optional extra
  • Hydraulic lifting on top dish to facilitate product recovery and cleaning-optional
